該電纜適合水下工作用于連接采撈船、浮動船塢，泵等，適合需要高機械強度的應用，亦可在水深小于500m的污水、咸水和苦咸水中使用。
標準
VDE 0250 Part 813

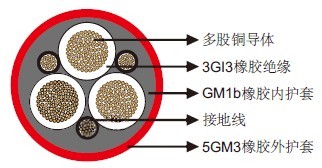

結構
導體：DIN VDE 0295標準class 5柔軟多股鍍錫銅導體。
內導體層：半導層。
絕緣：Type 3GI3橡膠。
外導體層：半導層。
接地線：分為3根分散于外層間隙或在單根芯線絕緣層外以同心方式分布（代碼.../3E）或合并在一
起作為第四根芯線。
內護套：Type GM1b橡膠，具有防水和防止水泡形成的特性。
外護套：Type 5GM3防水橡膠。
尺寸和重量
1.8/3kV
|
芯數×標稱截面積
|
最小外徑
|
最大外徑
|
標稱重量
|
|
NO. ×MM?
|
MM
|
MM
|
KG/KM
|
|
3×25+3×25/3
|
38.6
|
41.6
|
2480
|
|
3×35+3×25/3
|
42.5
|
45.5
|
3090
|
|
3×50+3×25/3
|
46.0
|
49.0
|
3750
|
|
3×70+3×35/3
|
49.2
|
52.2
|
4620
|
|
3×95+3×50/3
|
57.2
|
61.2
|
6200
|
|
3×120+3×70/3
|
60.9
|
64.9
|
7390
|
|
3×150+3×70/3
|
66.3
|
70.3
|
8830
|
|
3×185+3×95/3
|
69.4
|
73.4
|
10170
|
|
3×25+3×16/3E
|
41.3
|
44.3
|
1180
|
|
3×35+3×16/3E
|
43.9
|
46.9
|
1650
|
|
3×50+3×25/3E
|
47.8
|
50.8
|
2310
|
|
3×70+3×35/3E
|
52.5
|
56.5
|
3220
|
|
3×95+3×50/3E
|
59.4
|
63.4
|
4335
|
|
3×120+3×70/3E
|
65.5
|
69.5
|
5480
|
|
3×150+3×70/3E
|
69.2
|
73.2
|
6800
|
|
3×185+3×95/3E
|
72.2
|
76.2
|
8375
|
3.6/6kV
|
芯數×標稱截面積
|
最小外徑
|
最大外徑
|
標稱重量
|
|
NO. ×MM?
|
MM
|
MM
|
KG/KM
|
|
3×16/16
|
47.0
|
52.0
|
3240
|
|
3×25/25
|
50.0
|
55.0
|
3870
|
|
3×35/35
|
55.0
|
55.0
|
4780
|
|
3×50/50
|
59.0
|
64.0
|
5700
|
|
3×70/70
|
64.0
|
70.0
|
7000
|
|
3×25+3×25/3
|
44.7
|
47.7
|
3120
|
|
3×35+3×25/3
|
47.3
|
50.3
|
3600
|
|
3×50+3×25/3
|
52.2
|
56.2
|
4560
|
|
3×70+3×35/3
|
55.5
|
59.5
|
5470
|
|
3×95+3×50/3
|
59.8
|
63.8
|
6570
|
|
3×120+3×70/3
|
65.3
|
69.3
|
8090
|
|
3×150+3×70/3
|
68.9
|
72.9
|
9250
|
|
3×185+3×95/3
|
72.0
|
76.0
|
10600
|
|
3×25+3×16/3E
|
46.0
|
49.0
|
3160
|
|
3×35+3×16/3E
|
48.6
|
51.6
|
3640
|
|
3×50+3×25/3E
|
54.0
|
58.0
|
4600
|
|
3×70+3×35/3E
|
57.2
|
61.2
|
5510
|
|
3×95+3×50/3E
|
63.8
|
67.8
|
6610
|
|
3×120+3×70/3E
|
68.1
|
72.1
|
8130
|
|
3×150+3×70/3E
|
71.8
|
75.8
|
9290
|
|
3×185+3×95/3E
|
76.6
|
80.6
|
10840
|
6/10 kV
|
芯數×標稱截面積
|
最小外徑
|
最大外徑
|
標稱重量
|
|
NO. ×MM?
|
MM
|
MM
|
KG/KM
|
|
3×16/16
|
49.0
|
54.0
|
3450
|
|
3×25/25
|
54.0
|
59.0
|
4350
|
|
3×35/35
|
57.0
|
62.0
|
5050
|
|
3×25+3×25/3
|
46.4
|
49.4
|
3320
|
|
3×35+3×25/3
|
49.0
|
52.0
|
3810
|
|
3×50+3×25/3
|
54.0
|
58.0
|
4780
|
|
3×70+3×35/3
|
57.2
|
61.2
|
5700
|
|
3×95+3×50/3
|
61.5
|
65.5
|
6830
|
|
3×120+3×70/3
|
67.0
|
71.0
|
8360
|
|
3×150+3×70/3
|
70.7
|
74.7
|
9530
|
|
3×185+3×95/3
|
73.7
|
77.7
|
10890
|
|
3×25+3×16/3E
|
47.8
|
50.8
|
3360
|
|
3×35+3×16/3E
|
51.9
|
55.9
|
3850
|
|
3×50+3×25/3E
|
55.5
|
59.5
|
4820
|
|
3×70+3×35/3E
|
59.0
|
63.0
|
5740
|
|
3×95+3×50/3E
|
65.5
|
69.5
|
6870
|
|
3×120+3×70/3E
|
69.8
|
73.8
|
8400
|
|
3×150+3×70/3E
|
73.5
|
77.5
|
9570
|
|
3×185+3×95/3E
|
78.3
|
82.3
|
10930
|
8.7/15 kV
|
芯數×標稱截面積
|
最小外徑
|
最大外徑
|
標稱重量
|
|
NO. ×MM?
|
MM
|
MM
|
KG/KM
|
|
3×25+3×25/3
|
52.7
|
56.7
|
4050
|
|
3×35+3×25/3
|
55.3
|
59.3
|
4650
|
|
3×50+3×25/3
|
58.7
|
62.7
|
5390
|
|
3×70+3×35/3
|
63.8
|
67.8
|
6740
|
|
3×95+3×50/3
|
68.1
|
72.1
|
7870
|
|
3×120+3×70/3
|
71.7
|
75.7
|
9150
|
|
3×150+3×70/3
|
77.2
|
81.2
|
10770
|
|
3×185+3×95/3
|
80.2
|
84.2
|
12310
|
|
3×25+3×16/3E
|
54.0
|
58.0
|
4090
|
|
3×35+3×16/3E
|
56.6
|
60.6
|
4690
|
|
3×50+3×25/3E
|
60.3
|
64.3
|
5430
|
|
3×70+3×35/3E
|
65.5
|
69.5
|
6780
|
|
3×95+3×50/3E
|
70.3
|
74.3
|
7910
|
|
3×120+3×70/3E
|
76.4
|
80.4
|
9190
|
|
3×150+3×70/3E
|
80.1
|
84.1
|
10810
|
|
3×185+3×95/3E
|
83.1
|
87.1
|
12350
|
12/20 kV
|
芯數×標稱截面積
|
最小外徑
|
最大外徑
|
標稱重量
|
|
NO. ×MM?
|
MM
|
MM
|
KG/KM
|
|
3×25/25
|
66,0
|
72.0
|
6140
|
|
3×35/35
|
69.0
|
75.0
|
6900
|
|
3×25+3×25/3
|
57.0
|
61.0
|
4690
|
|
3×35+3×25/3
|
59.6
|
63.6
|
5260
|
|
3×50+3×25/3
|
64.8
|
68.8
|
6380
|
|
3×70+3×35/3
|
68.1
|
72.1
|
7370
|
|
3×95+3×50/3
|
72.4
|
76.4
|
8600
|
|
3×120+3×70/3
|
77.9
|
81.9
|
10290
|
|
3×150+3×70/3
|
81.5
|
85.5
|
11560
|
|
3×185+3×95/3
|
84.3
|
89.3
|
13000
|
|
3×25+3×16/3E
|
58.3
|
62.3
|
4730
|
|
3×35+3×16/3E
|
60.9
|
64.9
|
5300
|
|
3×50+3×25/3E
|
66.4
|
70.4
|
6420
|
|
3×70+3×35/3E
|
69.8
|
73.8
|
7410
|
|
3×95+3×50/3E
|
76.4
|
80.4
|
8640
|
|
3×120+3×70/3E
|
80.7
|
84.7
|
10330
|
|
3×150+3×70/3E
|
84.2
|
89.2
|
11600
|
|
3×185+3×95/3E
|
89.0
|
94.0
|
13040
|
14/25 kV
|
芯數×標稱截面積
|
最小外徑
|
最大外徑
|
標稱重量
|
|
NO. ×MM?
|
MM
|
MM
|
KG/KM
|
|
3×50/50
|
81.0
|
88.0
|
9600
|
|
3×70/70
|
86.0
|
93.0
|
11100
|
|
3×95/95
|
92.0
|
99.0
|
13020
|
|
3×25+3×25/3
|
64.4
|
68.4
|
5860
|
|
3×35+3×25/3
|
67.0
|
71.0
|
8390
|
|
3×50+3×25/3
|
70.4
|
74.4
|
7220
|
|
3×70+3×35/3
|
73.7
|
77.7
|
8720
|
|
3×95+3×50/3
|
79.8
|
83.8
|
9950
|
|
3×120+3×70/3
|
83.5
|
87.5
|
11380
|
|
3×150+3×70/3
|
88.7
|
93.7
|
13120
|
|
3×185+3×95/3
|
91.8
|
96.8
|
14770
|
|
3×25+3×16/3E
|
65.7
|
69.7
|
5900
|
|
3×35+3×16/3E
|
68.3
|
72.3
|
8430
|
|
3×50+3×25/3E
|
72.0
|
76.0
|
7260
|
|
3×70+3×35/3E
|
77.2
|
81.2
|
8760
|
|
3×95+3×50/3E
|
82.0
|
86.0
|
9990
|
|
3×120+3×70/3E
|
87.9
|
92.9
|
11420
|
|
3×150+3×70/3E
|
91.6
|
96.6
|
13160
|
|
3×185+3×95/3E
|
94.6
|
99.6
|
14810
|
18/30 kV
|
芯數×標稱截面積
|
最小外徑
|
最大外徑
|
標稱重量
|
|
NO. ×MM?
|
MM
|
MM
|
KG/KM
|
|
3×70/70
|
93.0
|
100.0
|
12780
|
|
3×95/95
|
97.0
|
104.0
|
14350
|
|
3×25+3×25/3
|
69.6
|
73.6
|
7010
|
|
3×35+3×25/3
|
72.2
|
76.2
|
7440
|
|
3×50+3×25/3
|
77.4
|
81.4
|
8590
|
|
3×70+3×35/3
|
80.7
|
84.7
|
9670
|
|
3×95+3×50/3
|
84.8
|
89.8
|
11010
|
|
3×120+3×70/3
|
90.2
|
95.2
|
12890
|
|
3×150+3×70/3
|
93.9
|
98.9
|
14260
|
|
3×185+3×95/3
|
96.8
|
102.0
|
15780
|
|
3×25+3×16/3E
|
70.9
|
74.9
|
7050
|
|
3×35+3×16/3E
|
73.5
|
77.5
|
7490
|
|
3×50+3×25/3E
|
79.0
|
83.0
|
8630
|
|
3×70+3×35/3E
|
82.4
|
86.4
|
9710
|
|
3×95+3×50/3E
|
88.8
|
93.8
|
11050
|
|
3×120+3×70/3E
|
93.1
|
98.1
|
12930
|
|
3×150+3×70/3E
|
96.8
|
101.8
|
14300
|
|
3×185+3×95/3E
|
101.6
|
106.6
|
15820
|
20/35 kV
|
芯數×標稱截面積
|
最小外徑
|
最大外徑
|
標稱重量
|
|
NO. ×MM?
|
MM
|
MM
|
KG/KM
|
|
3×70/70
|
102.0
|
110.0
|
14950
|
|
3×95/95
|
106.0
|
114.0
|
16540
|
|
3×95+3×50/3
|
95.0
|
102.0
|
13670
|
|
3×120+3×70/3
|
101.0
|
109.0
|
15760
|
