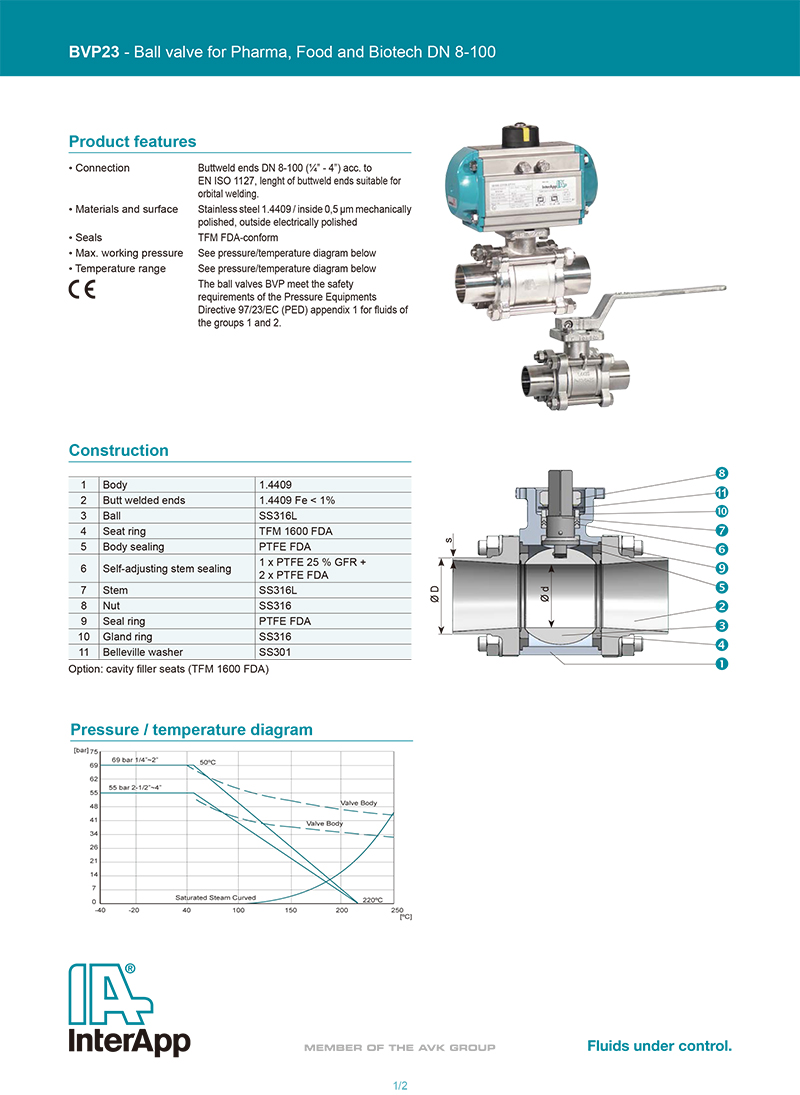

INTERAPP BVP23不銹鋼衛(wèi)生級(jí)潔凈球閥用于制藥，食品和生物技術(shù)。
• Connection Buttweld ends DN10-100 (¼” - 4”)
BVP23FG: acc. to EN ISO 1127,
Lenght of buttweld ends suitable for orbital welding.
• Materials and surface Stainless steel 1.4435 / inside 0,8 μm mechanical
polished, outside electrical polished
• Seals PTFE FDA-conform <150oC
PTFE-SS (metal reinforced) FDA-conform, for
steam and temperatures >150oC
• Max. working pressure According to buttweld ends standard (max. body
pressure 63 bar),
for steam applications and sterilisation max. 8 bar
• Temperature range -10°C ÷ 150°C, optional up to 170oC
(max. pressure for steam 8 bar)
The ball valves BVP meet the safety
requirements of the Pressure Equipments
Directive 97/23/EC (PED) appendix 1 for fluids of
the groups 1 and 2.
|
