帶電作業快速電線連接器( Insulated Jumpers 絕緣跳線夾,絕緣引流線，引流線，跳線夾）
Jumper device for the live line (hotline), jumper clamper or by-bass jumper
高壓危險！要注意防電保護！請檢查是否與您的要求相符！
Danger High Voltage! Attention to anti-power prevention! Please check if it meets your requirements!
|
| 絕緣跳線夾作用
|
帶電作業快速電線連接器( Insulated Jumpers 絕緣跳線夾,絕緣引流線，引流線，跳線夾），方便快捷連接用電設備兩端的線路，作用在于：
Jumper device for the live line (hotline), jumper clamper or by-bass jumper, connects lines of the two ends of consumer conveniently and swiftly.it is used in:
-
1) 在帶電檢修線路中，能高效快速連接用電設備兩端的線路，更換用電設備，使電網快速保持暢通。
1) the live line (hotline) servicing to connect lines of the two ends of the consumer quickly and high efficiently, so as to keep the power grid working while having the consumer replaced.
2）在帶電安裝用電設備（如變壓器）時，不需切斷主線電源，快速連通主線和新的用電設備，可臨時或長期使用。
2） the live line (hotline) consumer installing to connect the main line with new consumer for tentative or long time use without shutting off the main line power.
帶電作業快速電線連接器( Insulated Jumpers 絕緣跳線夾,絕緣引流線，引流線，跳線夾）廣泛用于電網、電廠、配電站、礦山、大型船舶、工地等電力檢修和安裝。
Jumper device for the live line (hotline), jumper clamper or by-bass jumper is widely used in electric power overhauling and installing of power grid, power plant, power substation, mine, large ship, construction site and so on.
|
| 絕緣跳線夾特點
|
 帶電作業快速電線連接器，具有安全可靠快速的特點。國際一流品質，產品已大量用于美國軍方電力搶修。
Jumper device for the live line (hotline), jumper clamper or by-bass jumper, has the features of safety, reliability and rapidity. It has been widely used in the United States military for power repairing with the international first-class quality.
帶電作業快速電線連接器( Insulated Jumpers 絕緣跳線夾,絕緣引流線，引流線，跳線夾）已獲中國實用新型，在不脫離設計構思前提下，任何變型和改進都屬于本保護范圍。任何單位和個人生產、銷售同類產品都屬違法行為，本公司可追究法律責任。
Jumper device for the live line (hotline), jumper clamper or by-bass jumper, has got the China utility model patent, any change or improvement get out from our design concept falls into the prevention of the patent. Any production or sale by company or personally is unlawful act. We will investigate and affix the legal liability.
絕緣電纜：采用專用材料制作，具有耐高壓、份量輕、抗老化、耐磨、線體柔軟、壽命長、使用方便等優點。所有電纜經2到3倍額定交流高壓測試。
Insulated Cable :Adopt special material, has the features of high voltage resistance, anti-aging, bad smell resistance, abrasion resistance, light weight, soft line body, long life and convenient use. All the cables won’t be broken-down for high voltage test of 2 to 3 times rated AC. Standard length is 3 meters, other length of cables on request.
帶電作業快速電線連接器( Insulated Jumpers 絕緣跳線夾,絕緣引流線，引流線，跳線夾）有8種主線尺寸可供選擇，電壓為ф-ф15kv， ф-ф25kv，ф-ф35kv。
Jumper device for the live line (hotline), jumper clamper or by-bass jumper, has 8 types of main line scopes, and use voltage is 15KV, 25KV, 35KV.
|

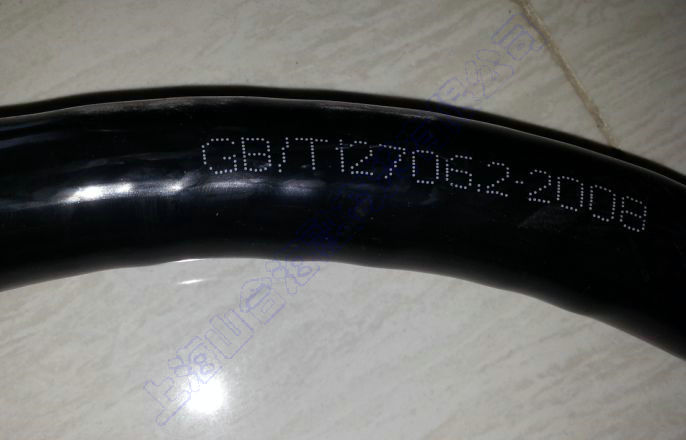

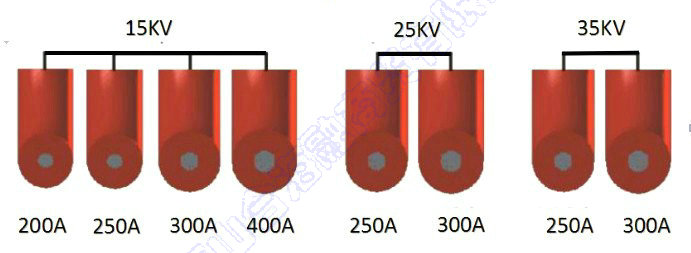

| 絕緣跳線夾電纜圖示
|
|

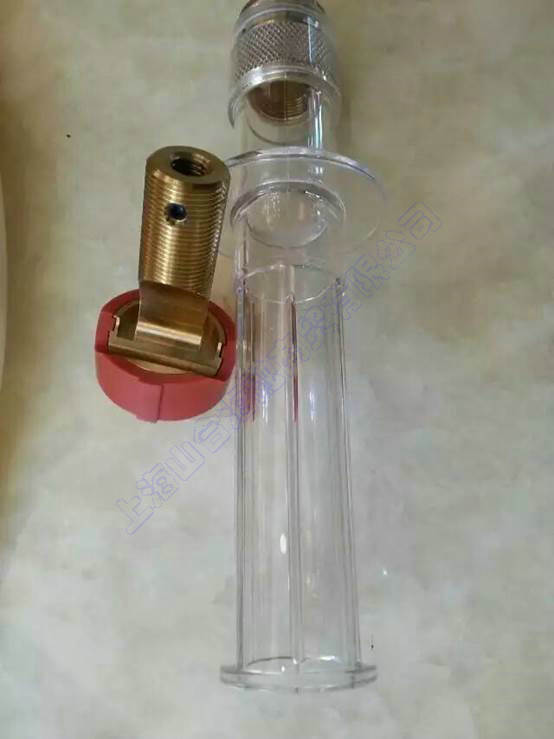

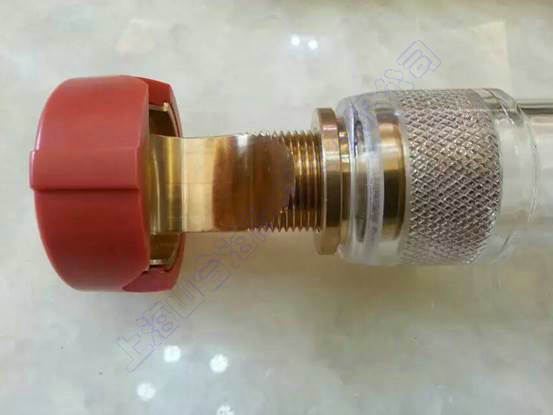

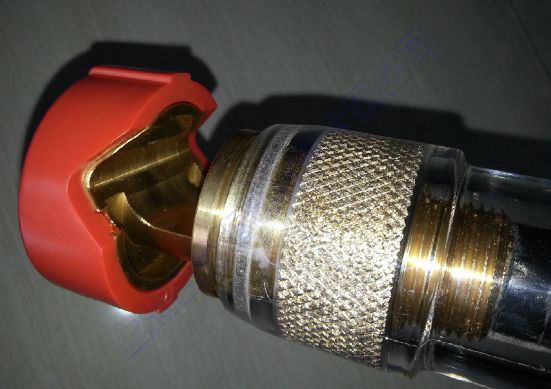

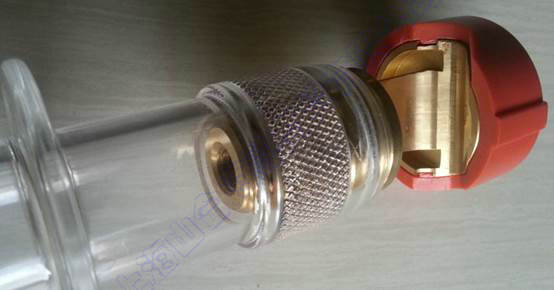

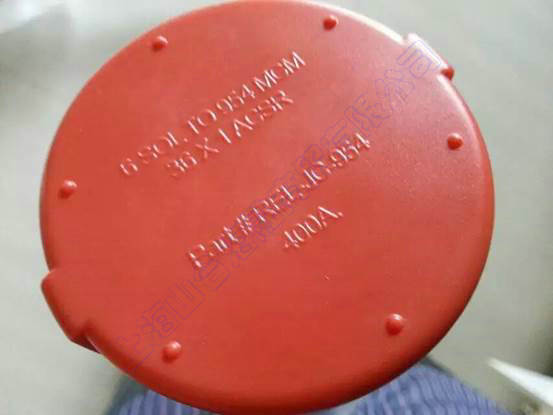

| 絕緣跳線夾手柄和爪部特性及圖示
|
絕緣跳線夾:不僅提供卓越的抓力，而且能夠抵抗臭氧老化和蝕痕作用。
Jumper device for the live line (hotline), jumper clamper or by-bass jumper not only to provide excellent grasping force, but also to resist the role of ozone aging and erosion.
手柄:采用絕緣透明防彈玻璃制作，可清楚查看通電時內部情況，有良好的絕緣性能, 還有很高的強度和韌性，100米落地測試不破裂。
The hand shank is made of transparent proof glass, through which you can clearly observe the inside status while power on. It has good insulating property, high intensity and toughness. It passed the 100meters drop test which assure unbroken while using.
主體和爪部采用銅合金材料精密加工,250小時鹽霧測試不變色,5年后還光亮如新。主線范圍4mm到32mm。最大使用電壓35KV。
954MCM/477MCM clamping chuck: precision machined with copper alloy, on-discoloring for 250H salt fog test. Main line scopes from 4MM to 32MM.Maximum using voltage 35KV.
|

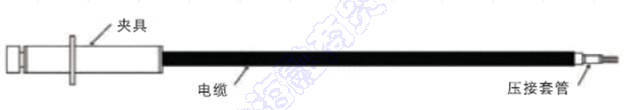

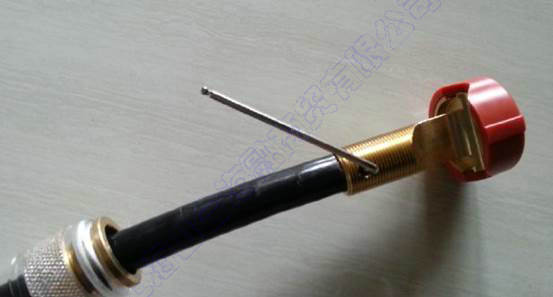

| 絕緣跳線夾部件圖示
|
跳線組用絕緣跳線纜和5/8—11UNC螺紋壓接套管組成。裝配好的銷售套件由3個基本組成部分，一對夾頭、一對壓線套管、一條3米長的絕緣電纜。
Jumper device consists of insulating jumper cable and 5/8 - 11UNC thread crimping sleeve. The assembled kit for sales consists of 3 basic components, one pair of wire casing, one pair of chuck and a 3 meter long insulating cable.

|
| 絕緣跳線夾規格表
|
規格表（JB是大夾頭，JS是小夾頭）
Specification Table(JB means big clamping chuck, JS means small clamping chuck))
|
產品規格
Product No.
|
最大持續電流(A)
Current
|
相對相電壓/相對地電壓
Withstand Voltage(KV)
|
總長（米）
Total Length(m)
|
夾頭長
Clamping chuck length(mm)
|
手柄顏色
Color of hand shank
|
|
2754/JS15203
|
200
|
15/10
|
3
|
350
|
透明Transparent
|
|
2755/JS15253
|
250
|
15/10
|
3
|
350
|
透明Transparent
|
|
2756/JS15303
|
300
|
15/10
|
3
|
350
|
透明Transparent
|
|
2757/JS15403
|
400
|
15/10
|
3
|
350
|
透明Transparent
|
|
2754/JB15203
|
200
|
15/10
|
3
|
350
|
透明Transparent
|
|
2755/JB15253
|
250
|
15/10
|
3
|
350
|
透明Transparent
|
|
2756/JB15303
|
300
|
15/10
|
3
|
350
|
透明Transparent
|
|
2757/JB15403
|
400
|
15/10
|
3
|
350
|
透明Transparent
|
|
21300/JB25253
|
250
|
15/10
|
3
|
350
|
透明Transparent
|
|
21060/JB25303
|
300
|
25/15
|
3
|
350
|
透明Transparent
|
|
21300/JS25253
|
250
|
25/15
|
3
|
350
|
透明Transparent
|
|
21060/JS25303
|
300
|
25/15
|
3
|
350
|
透明Transparent
|
|
2059/JB35253
|
250
|
35/20
|
3
|
350
|
透明Transparent
|
|
4370/JB35303
|
300
|
35/20
|
3
|
350
|
透明Transparent
|
|

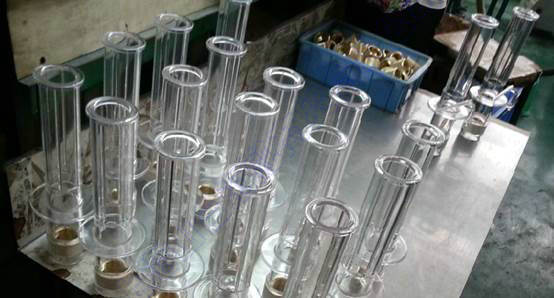

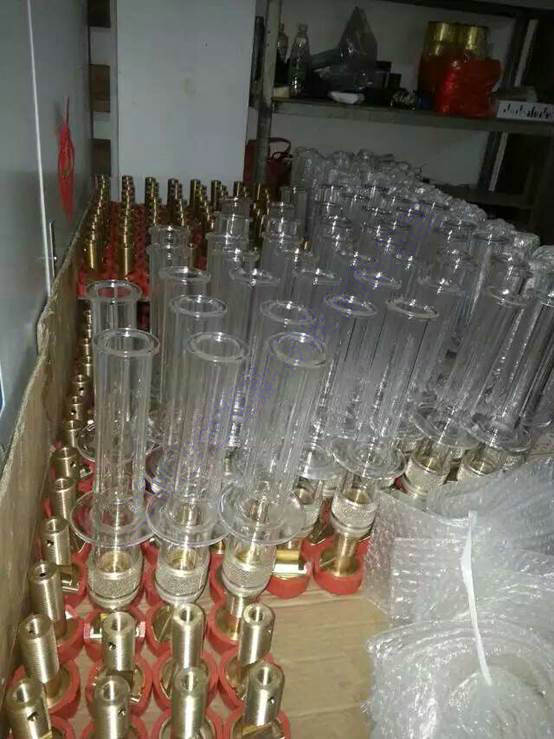

| 絕緣跳線夾裝配中
|
|

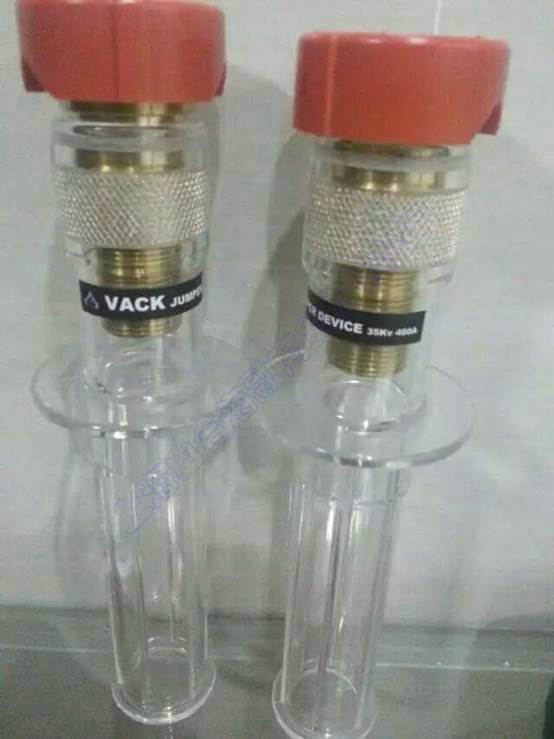

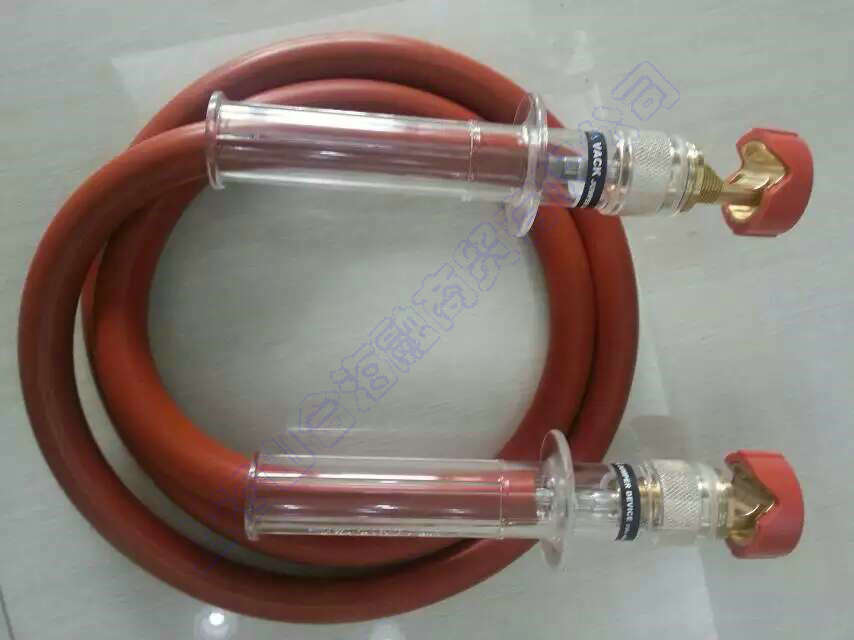

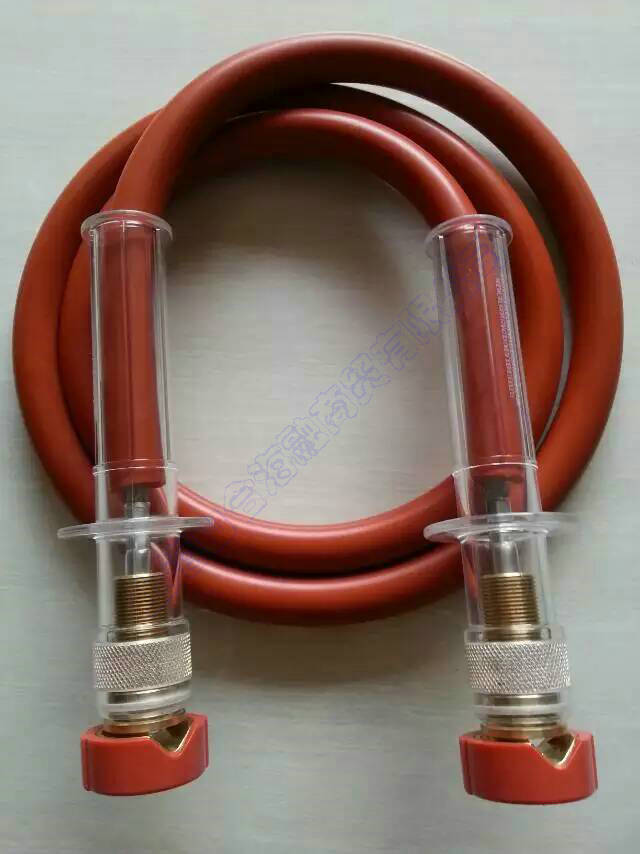

| 絕緣跳線夾成品圖
|
|

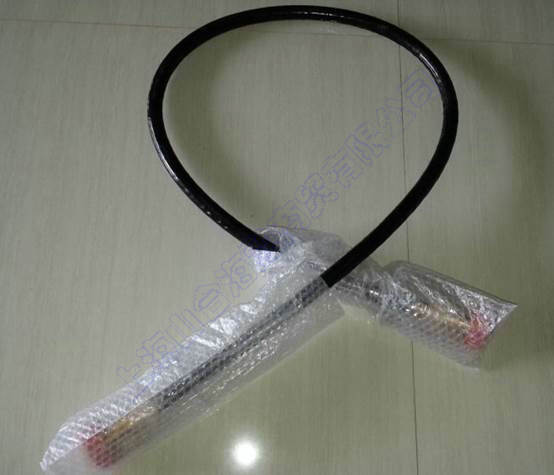

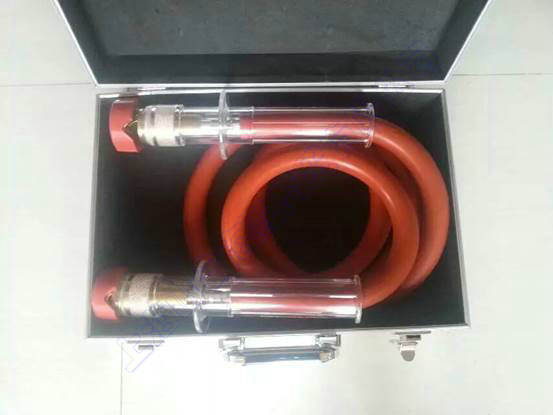

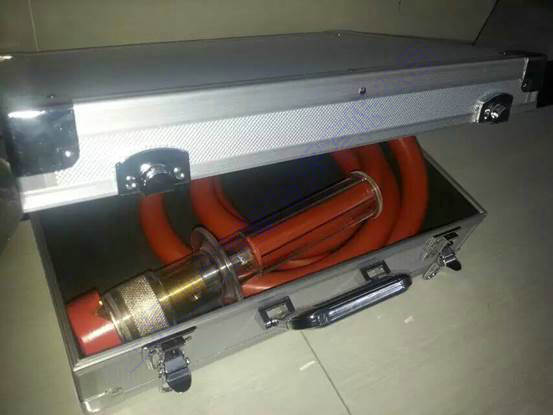

| 絕緣跳線夾帶外包裝箱圖
|
|
| 絕緣跳線夾裝箱準備出口
|
|
|
