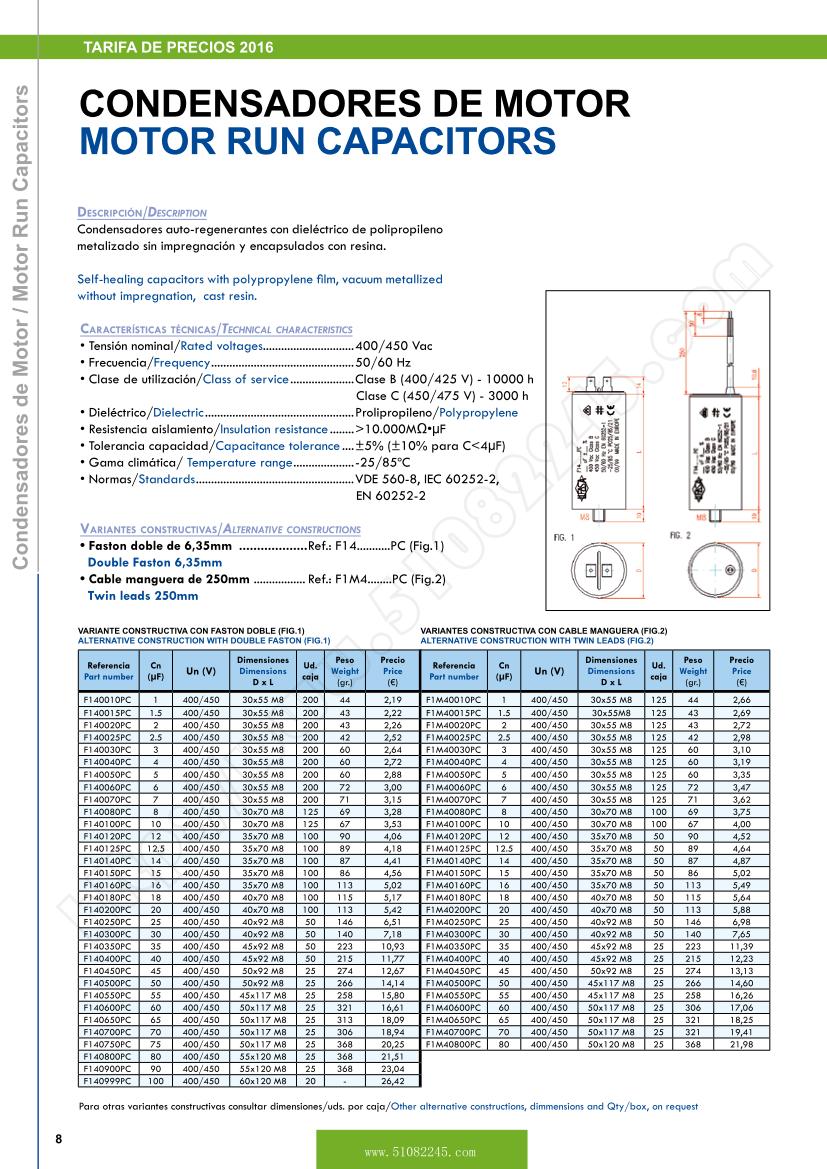

MOTOR RUN CAPACITORS
Self-healing capacitors with polypropylene film, vacuum metallized without impregnation, cast resin.
c aracterísticas técnicas /t eChniCal CharaCteristiCs
Tensión nominal/Rated voltages..............................400/450 Vac
Frecuencia/Frequency ...............................................50/60 Hz
Clase de utilización/Class of service .....................Clase B (400/425 V) - 10000 h
Clase C (450/475 V) - 3000 h
Dieléctrico/Dielectric .................................................Prolipropileno/Polypropylene
Resistencia aislamiento/Insulation resistance ........>10.000MμF
Tolerancia capacidad/Capacitance tolerance ....±5% (±10% para C<4μF)
Gama climática/ Temperature range ....................-25/85oC
Normas/Standards ....................................................VDE 560-8, IEC 60252-1,
EN 60252-1
v ariantes constructivas /a lternative ConstruCtions
Faston doble de 6,35mm ...................Ref.: F14...........PC (Fig.1)
Double Faston 6,35mm
Cable manguera de 250mm ................. Ref.: F1M4........PC (Fig.2)
Twin leads 250mm
ALTERNATIVE CONSTRUCTION WITH DOUBLE FASTON (FIG.1)
|
Part Number
型號
|
Cn(μF)
容量
|
Un(V)
電壓
|
Dimensions
尺寸
|
螺栓
|
Ud.
(最小起訂量)
|
Weight(gr.)
重量
|
Price()
單價（歐元）
|
|
F140010PC
|
1
|
400/450
|
30x55
|
M8
|
200
|
44
|
2,19
|
|
F140015PC
|
1.5
|
400/450
|
30x55
|
M8
|
200
|
43
|
2,22
|
|
F140020PC
|
2
|
400/450
|
30x55
|
M8
|
200
|
43
|
2,26
|
|
F140025PC
|
2.5
|
400/450
|
30x55
|
M8
|
200
|
42
|
2,52
|
|
F140030PC
|
3
|
400/450
|
30x55
|
M8
|
200
|
60
|
2,64
|
|
F140040PC
|
4
|
400/450
|
30x55
|
M8
|
200
|
60
|
2,72
|
|
F140050PC
|
5
|
400/450
|
30x55
|
M8
|
200
|
60
|
2,88
|
|
F140060PC
|
6
|
400/450
|
30x55
|
M8
|
200
|
72
|
3,00
|
|
F140070PC
|
7
|
400/450
|
30x55
|
M8
|
200
|
71
|
3,15
|
|
F140080PC
|
8
|
400/450
|
30x70
|
M8
|
125
|
69
|
3,28
|
|
F140100PC
|
10
|
400/450
|
30x70
|
M8
|
125
|
67
|
3,53
|
|
F140120PC
|
12
|
400/450
|
35x70
|
M8
|
100
|
90
|
4,06
|
|
F140125PC
|
12.5
|
400/450
|
35x70
|
M8
|
100
|
89
|
4,18
|
|
F140140PC
|
14
|
400/450
|
35x70
|
M8
|
100
|
87
|
4,41
|
|
F140150PC
|
15
|
400/450
|
35x70
|
M8
|
100
|
86
|
4,56
|
|
F140160PC
|
16
|
400/450
|
35x70
|
M8
|
100
|
113
|
5,02
|
|
F140180PC
|
18
|
400/450
|
40x70
|
M8
|
100
|
115
|
5,17
|
|
F140200PC
|
20
|
400/450
|
40x70
|
M8
|
100
|
113
|
5,42
|
|
F140250PC
|
25
|
400/450
|
40x92
|
M8
|
50
|
146
|
6,51
|
|
F140300PC
|
30
|
400/450
|
40x92
|
M8
|
50
|
140
|
7,18
|
|
F140350PC
|
35
|
400/450
|
45x92
|
M8
|
50
|
223
|
10,93
|
|
F140400PC
|
40
|
400/450
|
45x92
|
M8
|
50
|
215
|
11,77
|
|
F140450PC
|
45
|
400/450
|
50x92
|
M8
|
25
|
274
|
12,67
|
|
F140500PC
|
50
|
400/450
|
50x92
|
M8
|
25
|
266
|
14,14
|
|
F140550PC
|
55
|
400/450
|
45x117
|
M8
|
25
|
258
|
15,80
|
|
F140600PC
|
60
|
400/450
|
50x117
|
M8
|
25
|
321
|
16,61
|
|
F140650PC
|
65
|
400/450
|
50x117
|
M8
|
25
|
313
|
18,09
|
|
F140700PC
|
70
|
400/450
|
50x117
|
M8
|
25
|
306
|
18,94
|
|
F140750PC
|
75
|
400/450
|
50x117
|
M8
|
25
|
368
|
20,25
|
|
F140800PC
|
80
|
400/450
|
55x120
|
M8
|
25
|
368
|
21,51
|
|
F140900PC
|
90
|
400/450
|
55x120
|
M8
|
25
|
368
|
23,04
|
|
F140999PC
|
100
|
400/450
|
60x120
|
M8
|
20
|
-
|
26,42
|
|
ALTERNATIVE CONSTRUCTION WITH TWIN LEADS (FIG.2)
|
|
Part Number
型號
|
Cn(μF)
容量
|
Un(V)
電壓
|
Dimensions
尺寸
|
螺栓
|
Ud.
(最小起訂量)
|
Weight(gr.)
重量
|
Price()
單價（歐元）
|
|
F1M40010PC
|
1
|
400/450
|
30x55
|
M8
|
125
|
44
|
2,66
|
|
F1M40015PC
|
1.5
|
400/450
|
30x55
|
M8
|
125
|
43
|
2,69
|
|
F1M40020PC
|
2
|
400/450
|
30x55
|
M8
|
125
|
43
|
2,72
|
|
F1M40025PC
|
2.5
|
400/450
|
30x55
|
M8
|
125
|
42
|
2,98
|
|
F1M40030PC
|
3
|
400/450
|
30x55
|
M8
|
125
|
60
|
3,10
|
|
F1M40040PC
|
4
|
400/450
|
30x55
|
M8
|
125
|
60
|
3,19
|
|
F1M40050PC
|
5
|
400/450
|
30x55
|
M8
|
125
|
60
|
3,35
|
|
F1M40060PC
|
6
|
400/450
|
30x55
|
M8
|
125
|
72
|
3,47
|
|
F1M40070PC
|
7
|
400/450
|
30x55
|
M8
|
125
|
71
|
3,62
|
|
F1M40080PC
|
8
|
400/450
|
30x70
|
M8
|
100
|
69
|
3,75
|
|
F1M40100PC
|
10
|
400/450
|
30x70
|
M8
|
100
|
67
|
4,00
|
|
F1M40120PC
|
12
|
400/450
|
35x70
|
M8
|
50
|
90
|
4,52
|
|
F1M40125PC
|
12.5
|
400/450
|
35x70
|
M8
|
50
|
89
|
4,64
|
|
F1M40140PC
|
14
|
400/450
|
35x70
|
M8
|
50
|
87
|
4,87
|
|
F1M40150PC
|
15
|
400/450
|
35x70
|
M8
|
50
|
86
|
5,02
|
|
F1M40160PC
|
16
|
400/450
|
35x70
|
M8
|
50
|
113
|
5,49
|
|
F1M40180PC
|
18
|
400/450
|
40x70
|
M8
|
50
|
115
|
5,64
|
|
F1M40200PC
|
20
|
400/450
|
40x70
|
M8
|
50
|
113
|
5,88
|
|
F1M40250PC
|
25
|
400/450
|
40x92
|
M8
|
50
|
146
|
6,98
|
|
F1M40300PC
|
30
|
400/450
|
40x92
|
M8
|
50
|
140
|
7,65
|
|
F1M40350PC
|
35
|
400/450
|
45x92
|
M8
|
25
|
223
|
11,39
|
|
F1M40400PC
|
40
|
400/450
|
45x92
|
M8
|
25
|
215
|
12,23
|
|
F1M40450PC
|
45
|
400/450
|
50x92
|
M8
|
25
|
274
|
13,13
|
|
F1M40500PC
|
50
|
400/450
|
45x117
|
M8
|
25
|
266
|
14,60
|
|
F1M40550PC
|
55
|
400/450
|
45x117
|
M8
|
25
|
258
|
16,26
|
|
F1M40600PC
|
60
|
400/450
|
50x117
|
M8
|
25
|
306
|
17,06
|
|
F1M40650PC
|
65
|
400/450
|
50x117
|
M8
|
25
|
321
|
18,25
|
|
F1M40700PC
|
70
|
400/450
|
50x117
|
M8
|
25
|
321
|
19,41
|
|
F1M40800PC
|
80
|
400/450
|
50x120
|
M8
|
25
|
368
|
21,98
|
Other alternative constructions, dimmensions and Qty/box, on request
