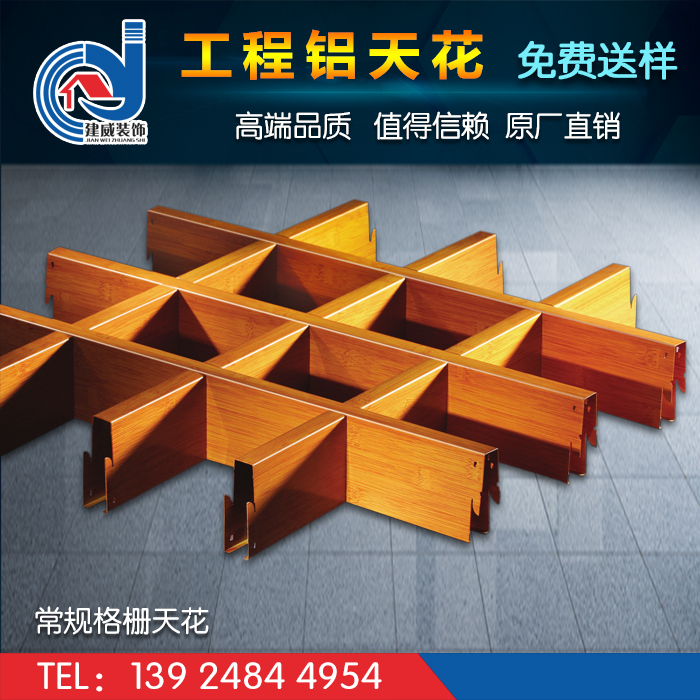

隨著時代的發展，人們對建筑裝飾越來越重視，鋁格柵也成為了越來越多裝飾材料中的一種，鋁格柵吊頂也越來越受歡迎。鋁格柵吊頂規格一般為寬度：10mm  高度：30 mm 35mm 40mm 50 mm ，寬度：15mm  高度：50 mm 60mm 80mm 90 mm  100mm 110mm 120 mm ，寬度：20mm  高度：50 mm 60mm 70mm 80mm 90 mm  100mm 110mm 120 mm 。然而鋁格柵吊頂安裝決不能將就，那怎么樣才能不辜負自己呢？

With the development of the times, People pay more and more attention to architectural decoration , aluminum grille has become one of more and more decorative materials, aluminum grille ceiling is also more and more popular. General specification for aluminum grille ceiling is width: 10mm height: 30 mm 35mm 40mm 50 mm ;width: 15mm, height: 50 mm 60mm 80mm 90 mm 100mm 110mm 120 mm ;width: 20mm, height: 50 mm 60mm 70mm 80mm 90 mm 100mm 110mm 120 mm. However, the installation of aluminum grille ceiling can’t never be put up with , then how can we not live up ourselves?

鋁格柵吊頂安裝：

 aluminum grille ceiling installation ：

⑴彈線:用水準儀在房間內每個墻角上抄出水平點，彈出水準線，從水準線量至吊頂設計高度，用粉線沿墻彈出水準線。同時在混凝土頂板彈出主龍骨的位置。

（1）snap the line: The horizontal level is removed from each corner of the room with a level instrument, and the level line is ejected , pop-up level from level to high ceiling design, snap the level line with a line along the wall . At the same time, the main keel is released on the concrete roof.

⑵固定吊掛桿件:采用膨脹螺栓固定吊掛桿件。吊桿的一端同L30*30*3角碼焊接，另一端用攻絲套出大于100㎜的絲桿。吊桿用膨脹螺栓固定在樓板上，用沖擊電錘打孔

The fixed hanging bar: use the expansion bolt to fix hanging bar. One end of a hanger rod is welded with L30*30*3 wire rod bracket, the other end taps out the screw mandrel that is greater than 100 mm. The hanger rod is fixed on the floor with the expansion bolt,and impact hammer drilling

⑶輕鋼龍骨安裝:輕鋼龍骨應吊掛在吊桿上，輕鋼龍骨應平行房間長向安裝，同時應起拱。主龍骨的接長應采取對接，相鄰龍骨的對接接頭要相互錯開。輕鋼龍骨掛好后應基本調平�？缍却笥�15m以上的吊頂，應在主龍骨上，每隔15m加一道大龍骨，并垂直主龍骨焊接牢固。

（3）Installation of the light steel keel: light steel keel should be hung on the hanger rod, light steel keel should be parallel to the long room installation, at the same time,it should be in an arch. The length of the main keel should be butted, and the butt joints of adjacent keels shall be staggered with each other. Light steel keel should be basically leveling after hanging. The ceiling with a span greater than 15m shall be on the main keel, plus a big keel at intervals of 15m, and be welded firmly to the vertical main keel.

⑷彈簧片安裝:用吊桿與輕鋼龍骨連接，間距900㎜～1000㎜，再將彈簧片卡在吊桿上。

（4）The spring strip installation: boom is connected with the light steel keel spacing of 900 mm to 1000 mm, Then clip the spring onto the boom.

⑸格柵主副骨組裝:將格柵的主副骨在下面按設計圖紙的要求預裝好。

(5)The main side grille assemble: the main and side bone grille are assembled below according to the requirements of design drawings with good.

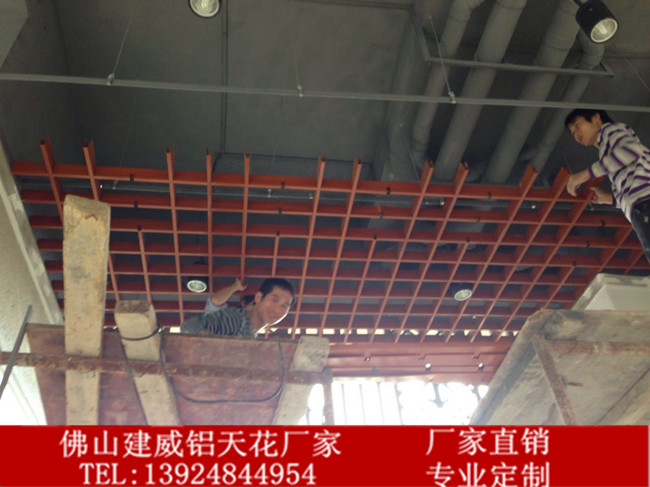

⑹格柵安裝:將預裝好的格柵天花用吊鉤穿在主骨孔內吊起，將整柵的天花連接后，調整至水平。

（6）Grille installation: the pre packaged grille ceiling is hung by the hook in the main bone hole, after the whole grille ceiling connected, adjusted it to the level of.
