柴油計量表為齒輪流量計代表性產品 柴油專用器
選型多樣化價格懸殊無從選擇
凌經理為你提供選型參考0517-83308747 15896194586

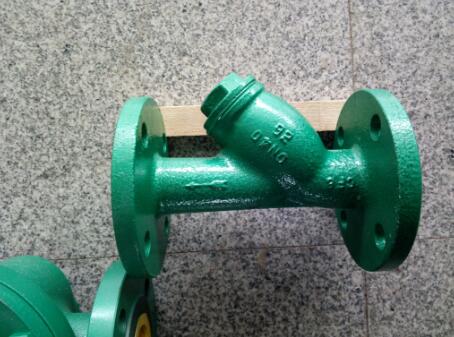

Y型過濾器和齒輪流量計
一、柴油計量表原理:
The structure and working principle:
柴油計量表由流量變送器和計數機構組成。變送器與計數機構之間加裝散熱器,則構成高溫型流量計。柴油計量表送變器由裝有一對橢圓齒輪轉子的計量室和密封聯軸器組成,計數機構則包含減速機構、調節機構、計數器、發訊器。
Elliptical gear flowmeter by flow transmitter and counting mechanism. The radiator is installed between transmitter and counting mechanism, Is a high temperature type flowmeter. Transducer is composed of a metering chamber is provided with a pair of elliptical gear rotor and seal coupling, Counting mechanism is composed of reducer, Adjusting mechanism, counter, transmitter.
二、柴油計量表適用:
柴油計量表裝有指針和字輪累積裝置,可現場直接顯示流經管道內的液體流量和瞬時流量。在計數機構中附加發訊裝置與電顯儀表配套可實現累積、定量和瞬時流量遠傳集中控制。加裝散熱器或橢輪齒可測量高溫、高粘液體。
series of elliptical gear flowmeter is provided with a pointer and a character wheel accumulation device, Can directly display the liquid flow and transient flow through the pipeline. Additional signaling device and electric display instrument can be accumulated in the counting mechanism, Quantitative and instantaneous flow remote centralized control. The radiator is installed or elliptic gear capable of measuring high temperature, high viscosity liquid.
不同的液體(酸、堿、鹽、有機溶液等)流量計主體可選擇不同的材質制造。
Different liquids (acid, alkali, salt, organic solution) flowmeter body can choose different materials manufacturing.
三、柴油計量表材質配選:
|
殼體、前蓋后蓋 |
蓋板 |
橢圓齒輪 |
軸 |
軸套 |
公稱壓力(MPa) |
S6170-A |
鑄鐵 |
鑄鐵 |
鑄鐵 不銹鋼 鋁合金 工程材料 |
不 銹 鋼 |
含油青銅 或滾動軸承 |
1.6 |
S6170-E |
鑄鋼 |
鑄鐵 |
DN50以下6.3; DN80-100 4.0 、6.3; DN150-200 2.5。 |
|||
S6170-Q |
鑄鐵 |
鑄鐵 |
石墨 |
1.6 |
||
S6170-L |
鋁合金 |
鑄鐵 不銹鋼 |
含油青銅、石墨、滾動軸承 |
1.6、2.5 |
||
S6170-B、C |
不銹鋼 |
不銹鋼 |
不銹鋼 |
石墨、滾動軸承 |
1.6、2.5 |
|
注1. S6170-C 材質為0Cr18Ni12Mo2Ti; S6170-B 材質為0Cr18Ni9Ti。 2. 2.5MPa以下法蘭為凸面形式;6.3 MPa法蘭為凹凸面形式,4.0 MPa法蘭兩種形式均有。 |
四、柴油計量表配置備選:
基本 型號 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
說明 |
計數器 |
公稱 通徑 |
公稱 壓力 |
材質 |
輸出 方式 |
工作 溫度 |
準確度 |
||
fm-lc-l |
|
|
|
|
|
|
|
橢圓齒輪流量計 |
|
J |
|
|
|
|
|
|
機械計數器 |
|
II |
|
|
|
|
|
|
電子計數器 |
|
H |
|
|
|
|
|
|
回零計數器 |
|
|
8~250 |
|
|
|
|
|
公稱通徑8~250mm |
|
|
|
1.6~42 |
|
|
|
|
公稱壓力1.6~42mpa |
|
|
|
|
C304 |
|
|
|
轉子為304不銹鋼 |
|
|
|
|
C316 |
|
|
|
轉子為316不銹鋼 |
|
|
|
|
CC304 |
|
|
|
殼體、轉子為304不銹鋼 |
|
P3 |
|
|
CC316 |
|
|
|
殼體、轉子為316不銹鋼 |
|
|
|
|
|
G |
|
|
脈沖輸出 |
|
|
|
|
|
I |
|
|
4-20mA電流輸出 |
|
|
|
|
|
R |
|
|
RS485、Mudbus |
|
|
|
|
|
H |
|
|
Hart協議輸出 |
|
|
|
|
|
|
A |
|
工作溫度-20℃~+80℃ |
|
|
|
|
|
|
B |
|
工作溫度-20℃~+350℃ |
|
|
|
|
|
|
|
0.5 |
0.5級 |
|
|
|
|
|
|
|
0.2 |
0.2級 |
五、柴油計量表安裝對應:
六、柴油計量表優點所在:
七、柴油計量表回零配選:
|
A |
H |
13型 |
J1 |
D |
指針 六位滾輪累計 |
|
● |
|
|
|
指針 六位滾輪累計 回零 |
|
|
● |
|
|
指針 累計帶發信 |
● |
|
|
|
● |
單發信(僅信號輸出) |
|
|
|
● |
|
液晶顯示(瞬時、累積、4-20m、脈沖) |
|
|
|
|
|
八、柴油計量表
工藝表:
采用45°組合的擺線型雙轉子及獨創的螺旋結構設計,使流量計在工作中排量均勻,運轉平穩、震動和噪音小。
還具有以下特點;系列化,品種全,規格多,積木式結構;功能全,可按用戶對產品功能要求,選擇不同的結構組合。
可配套國外先進的容差調整機構和顯示表頭(現在可配美國布魯克斯容差調整機構和顯示表頭;7887計數器)。
介質口徑與清零鈕展示
九、柴油計量表小結:
Product introduction
總的來說柴油計量表是用于管道中液體流量連續或間斷測量和控制的容積式計量儀表。它具有量程范圍大、準確度高、壓力損失小、粘度適應性強、能測量高溫高粘液體、標定方便、安裝簡易等諸多優點。適用于石油、化工、化纖、交通、商貿、食品、醫藥衛生等部門的流量計量。
series of elliptical gear flowmeter is used for volume measurement instrument piping of liquid flow in continuous or intermittent measurement and control. It has large measuring range, High accuracy, Small pressure loss, Viscosity adaptability, Measurement of high temperature and high viscosity liquid, Calibration is easy, Easy installation and many other advantages. Flow measurement used in petroleum, chemical, chemical fiber, transportation, commerce, food, medicine and public health departments.
